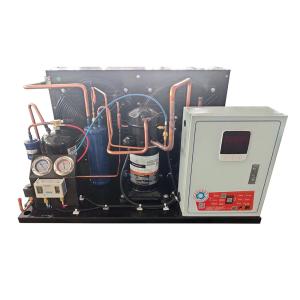

Vortex Refrigeration Integrated Power Box 380V Commercial Condensing Unit 3000m3/H

Brand Name : KUB

Model Number : ZSI09KQE

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Year

Delivery Time : 25

Packaging Details : Pallet packaging

Power Supply : 380V50Hz

structure type : vortex

weight : 22kg

Compressor brand : Copeland

Energy efficiency ratio : 3.4wh

Remote control : YES

Contact Now

Zsi09kqe refrigeration equipment integrated control box commercial condensing unit

◆ Application For Various Cold Storage, Meat Prodessing Store,Commercial Cold Room , Vegetable,Fruit And Meat Preservation, Dairy Products Cooling, Medicine Stores,Seeds Processing Store EtC,Temperature Range From +5°C To -23°C

◆ Low Noise, Low Vibration ,Stable Working With Copeland, Bitzer And Danfoss,T ecumseh,Dorin And Other Freezing Scroll Compressors

Technical Parameters
Unit Model	Power(R22)	Coolingcapaclty	Air Condenser		Evaporating Temperature(℃)						ConnectionSpec.(mm]		Dimension(rmm)
Unit Model	HP	w	AirFlow(m³/h]	Fan Dla(mm)	-12	-10	-5	0	5	10	Inlet	Outlet	AxBxC
ZB15H	2	3800	3000	1×400	3300	3550	4350	5200	6250	7400	16	10	700x600x580
ZB19H	2.5	4200	3000	1x400	3650	3950	4850	5850	7000	8300	16	10	700x600x580
ZB21H	3	5350	3000	1×400	4650	5050	6200	7450	8850	10500	16	10	700x600x580
ZB26H	3.5	5850	2*1800	2x350	5100	5550	6800	8200	9850	11700	19	12	900x650x480
ZB29H	4	6500	2*3000	2x400	5400	6050	7700	9650	11900	14400	19	12	1010x710x580
ZB38H	5	8450	2*3000	2x400	7300	8000	9950	12200	14650	17300	19	12	1010x710x580
ZB45H	6	10750	2*3000	2x400	9400	10200	12400	14900	17800	210007	19	12	1010x710x680
ZB58H	8	12800	4*1800	4x350	11800	14500	17700	21400	25700	305007	28	16	1010x710x680
ZB66H	9	15100	4*3000	4x400	13950	15100	18400	22200	26500	31500	28	16	1010x710x980
ZB76H	10	18100	4*3000	4x400	16400	17800	21700	25800	30500	35500	28	16	1010x710x980
ZB88H	12	21000	4*3000	4x400	18800	20400	24900	30000	36000	42000	28	16	1010x710x1280
ZB95H	13	22300	4*3000	4x400	19500	21400	26500	32000	38200	45200	28	16	1010x710x1280
ZB114H	16	27200	4*3000	4x400	23200	25500	31700	38500	46100	54500	35	16	1010x710x1280

Nominal working condition is based on Condensing Temp=40℃,Ambient Temp=35℃
