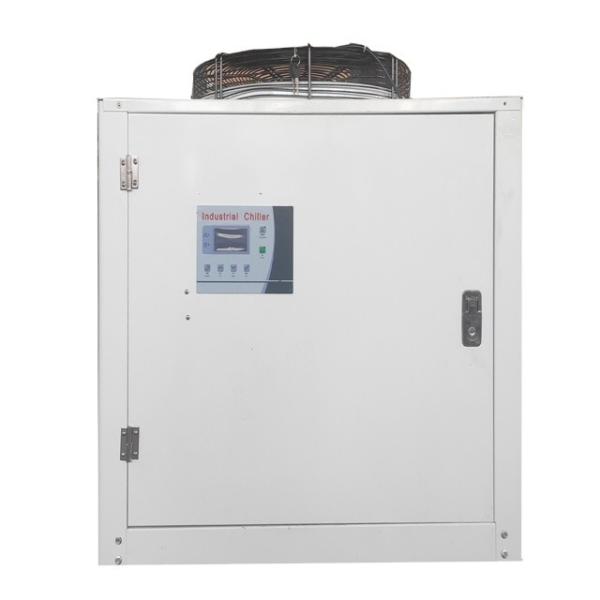

LSQ-05AHE Hermetic Compressor Small Condensing Unit 5hp Air Cooled Chiller

Brand Name : KUB

Model Number : LSQ-05AHE

Certification : CE

Place of Origin : Shanghai, China

MOQ : 1

Price : Consult

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Year

Delivery Time : 20days

Packaging Details : Pallet packaging

Condition : New

After Warranty Service : Online support

Showroom Location : None

Machinery Test Report : Provided

Warranty of core components : 1 Year

Type : Chiller

Product name : Chiller

Compressor : 5hp compressor

Voltage : 400V

Original : Shanghai.China

Applicable Industries : otels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Co

Local Service Location : None

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Core Components : Compressor

After-sales Service Provided : Online support

Refrigerant : R22/R404A

Application : machine

Color : black

Horse power : 5HP

Condenser type : Air Cooler Condenser

Contact Now

Supply Ability

Supply Ability: 1000 Set/Sets per Year

Packaging & Delivery

Packaging Details: The wooden packaging

Port: Shanghai

Lead Time:

Quantity(Sets)	1 - 1	2 - 5	>5
Est. Time(days)	20	25	To be negotiated

LSQ-05AHE Hermetic Compressor Small Condensing Unit 5hp Air Cooled Chiller

The following calibration conditions : chilled water return water temperature of 12℃ out water temperature of 7℃L ambientemperature of 35℃G;
Model		LSQ-
		05AHE	0AHE	10AHE	12AHE	15AHE	25AHE	30AHE	40AHE
Cooling capacity		13.1	21.2	28	32	42	64	81	108
voltage		3P-380v-50Hz
Machine power		4.81	801	10.21	11.8	15.1	23.6	30.2	38.8
Machine current		9.9	16	17.6	21.4	27.7	42.7	55.4	68.3
Compressor	Type	Hermeticscroll compressor
	input power	4.01	6.1	8.3	9.2	12.4	18.3	24.8	32.2
ondenser	Type	Copper tube aluminum sheet heat exchanger
	fan power	0.25	1.16	1.16	1.16	1.2	2.2	3.48	3.6
Evaporator	Type	water tank immersed heat	Dry shell and tube heat exchanger (or plate heat exchanger)
	ater pipe interfa	DN25	DN40			DN50		DN65
	Rated flow	2.3	3.6 4.8		5.5	7.2	11	14.4	18.6
Refrigerant		R22
hilled water pumps	Type	High efficiency,low noise centrifugal pump
	input power	0.55	0.75	0.75	1.5	1.5	1.5	2.2	2.2
	Head	22	23	20	18	25	24	23	22
water tank nominal wvolume		0	100	120	150	250	320	350	400
	l	1400	1550	155o	1600	1750	2050	50	2550
	w	810	810	850	850	1000	1250	1250	1350
	H	1390	1550	1550	1550	1600	1600	1850	2050
The flowin cliratoncondtioms:treeing medhum (geyceol aqueous souton) inet water temperature -11℃ outet water temperature -1 ' c ambient temperatue 35℃
Model		TSQ-
		05ALE	0BALE		10ALE		12ALE	15ALE
Cooling capacity		5.2	6.9		11.2		13.3	16
voltage		3p-380V-50Hz
Machine power		5.42	8.8		10.7		13	15.7
Machine current		10.7	17.7		19.2		23.2	29.8
Compressor	Type	Hermetic scroll compressor
	input power	4.7	7.5		9.2		10.7 13.0
Condenser	Type	Coppertube aluminum sheet heat exchanger
	input power	0.2 0.58			0.75 0.75 1.2
Evaporator	Type	Dry shell and tube heat exchanger(or plate heat exchanger)
	ater pipe interfa.	DN25	DN40					DN50
	Rated flow	1.2	1.6 2.6 3.1					3.7
Refrigerant		R404A
hilled water pumps	Type	High ef iciency,low noise centrifugal pump
	input power	0.55	0.75		0.75		1.5	1.5
	head	21	22		19		17	25
water tank nor nal volume		90	100		115		145	250
size		1250	1400		1550		1550	1600

LSQ-05AHE Hermetic Compressor Small Condensing Unit 5hp Air Cooled Chiller
